DIO UNICON Kit 7 (UK 07)
In stock

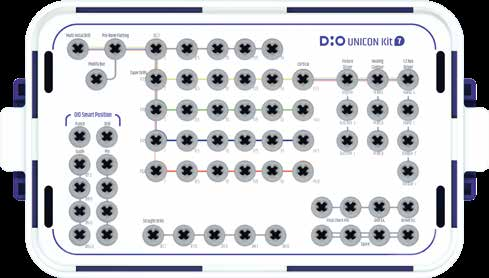

Surgical kit for placing DIO UNICON fixtures, with the tray laid out left to right in the order of the drilling protocol. It holds the Smart Position tools for planning implant position and spacing, the multi initial, straight, taper and cortical drills for F3.5 to F5.0 fixtures in lengths of 7–13 mm, and the fixture drivers, check pins, healing contours, hex drivers, extensions, torque wrench and depth gauge. Drilling runs at 800–1,500 RPM and fixtures are placed at 20 RPM.
This item is priced on request. Prefer to talk? Message us or call 070 210 025.
Free delivery in Phnom Penh Genuine product · warranty included
Specifications
| System | UNICON |
|---|---|
| Type | Surgical kit |
| Diameters | for fixtures F3.5, F4.0, F4.5 and F5.0 |
| Lengths | taper drills for 7, 8.5, 10, 11.5 and 13 mm |
| Speed | 800–1,500 RPM for drilling, 20 RPM for fixture placement |
| Drilling sequence | Multi Initial Drill, Straight Drill Ø2.2, taper drills up to the fixture size (one size short in soft bone, where F3.5 uses the Ø3.0 Straight Drill instead), Cortical Drill in hard bone, then the fixture |
| Contents | Ø2.0 Tissue Punch, Position Drill, Positioning Bells Ø7.2, Ø8.0, Ø9.0 and Ø10.0, Initial Check Pin, Multi Initial Drill, Modify Bur, Pre-bone Flattening Drill Ø4.0, Straight Drill Ø2.2 in 5 lengths, 5 Straight Drills Ø2.7 to Ø4.6, 20 Taper Drills F3.5 to F5.0 in 5 lengths, 4 Cortical Drills for F3.5 to F5.0, 3 Fixture Drivers, Final Check Pin, 3 Healing Contours, Drill Extension Set, 4 1.2 Hex Drivers, Connector Extension, Torque Wrench, Double Depth Gauge |
